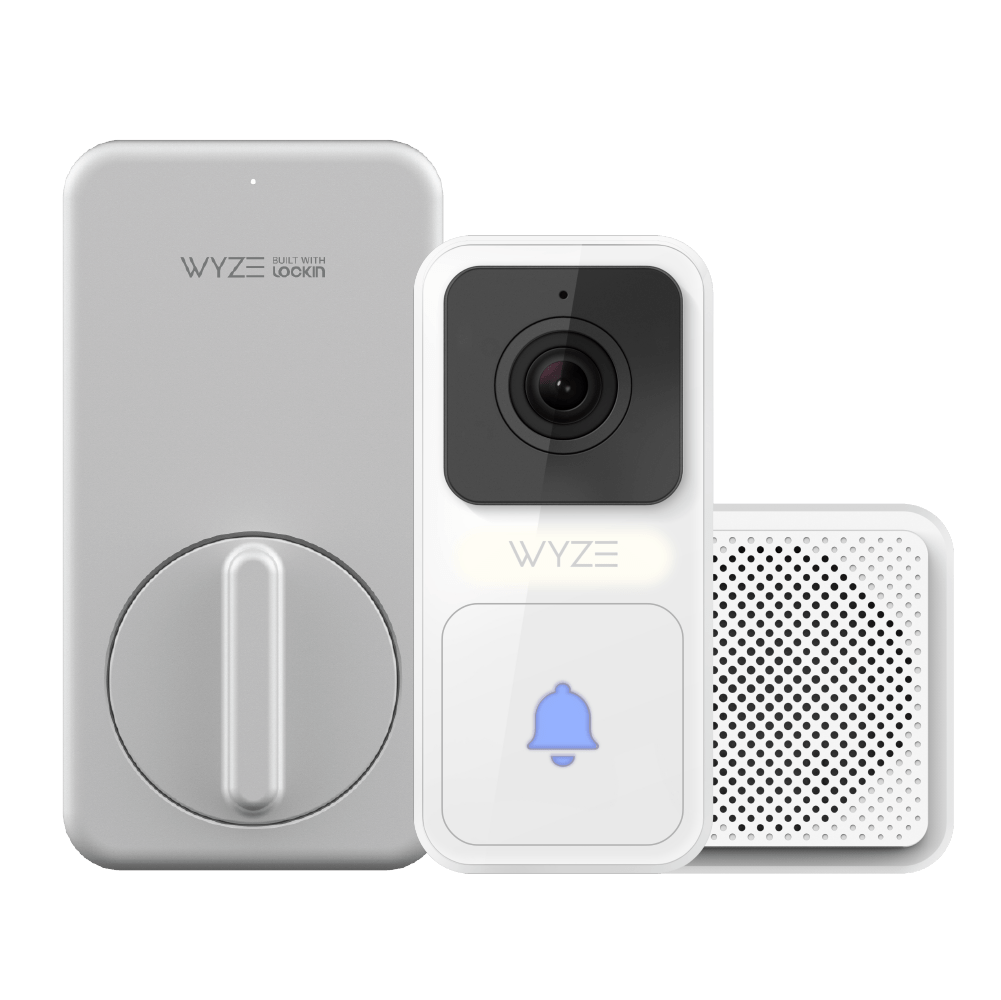

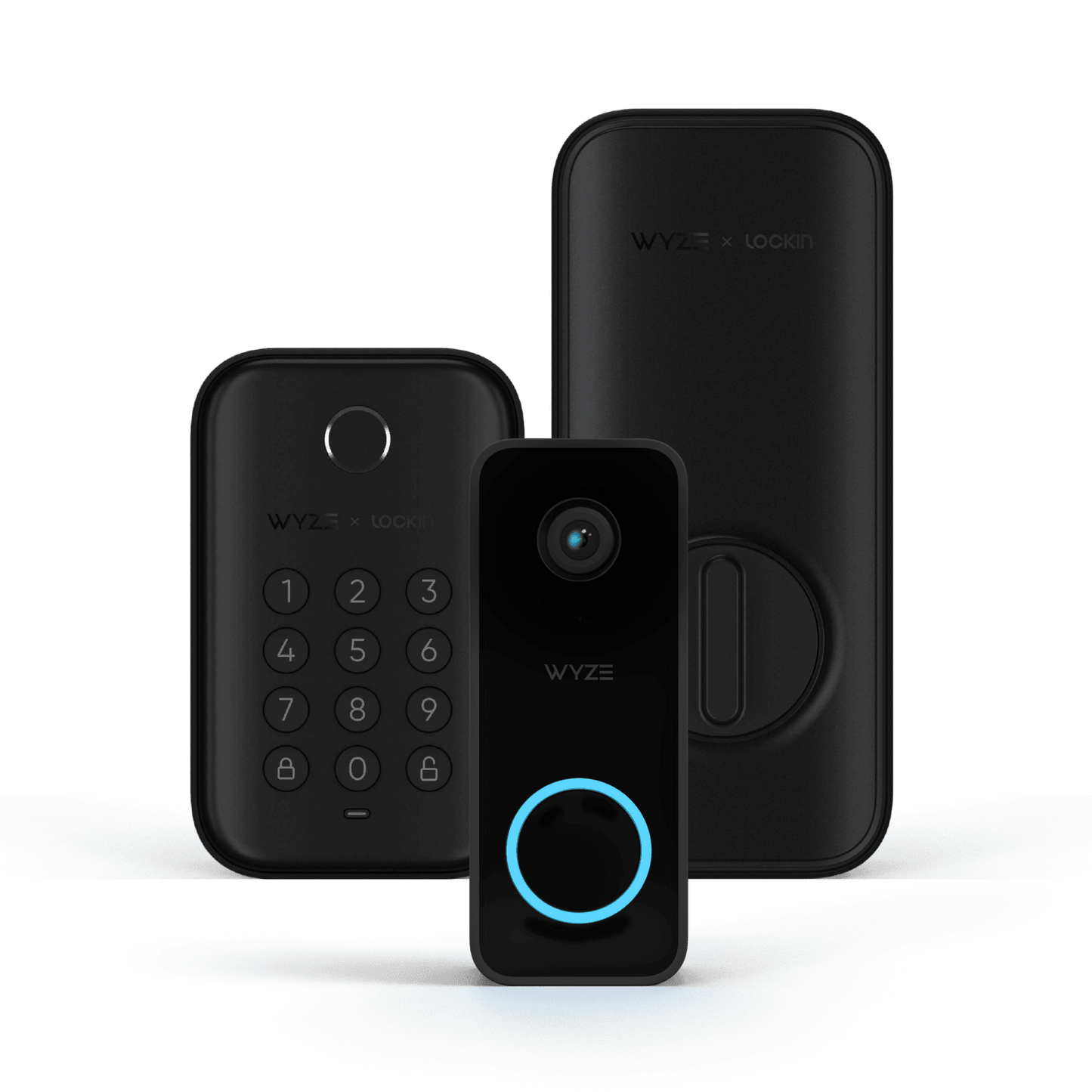

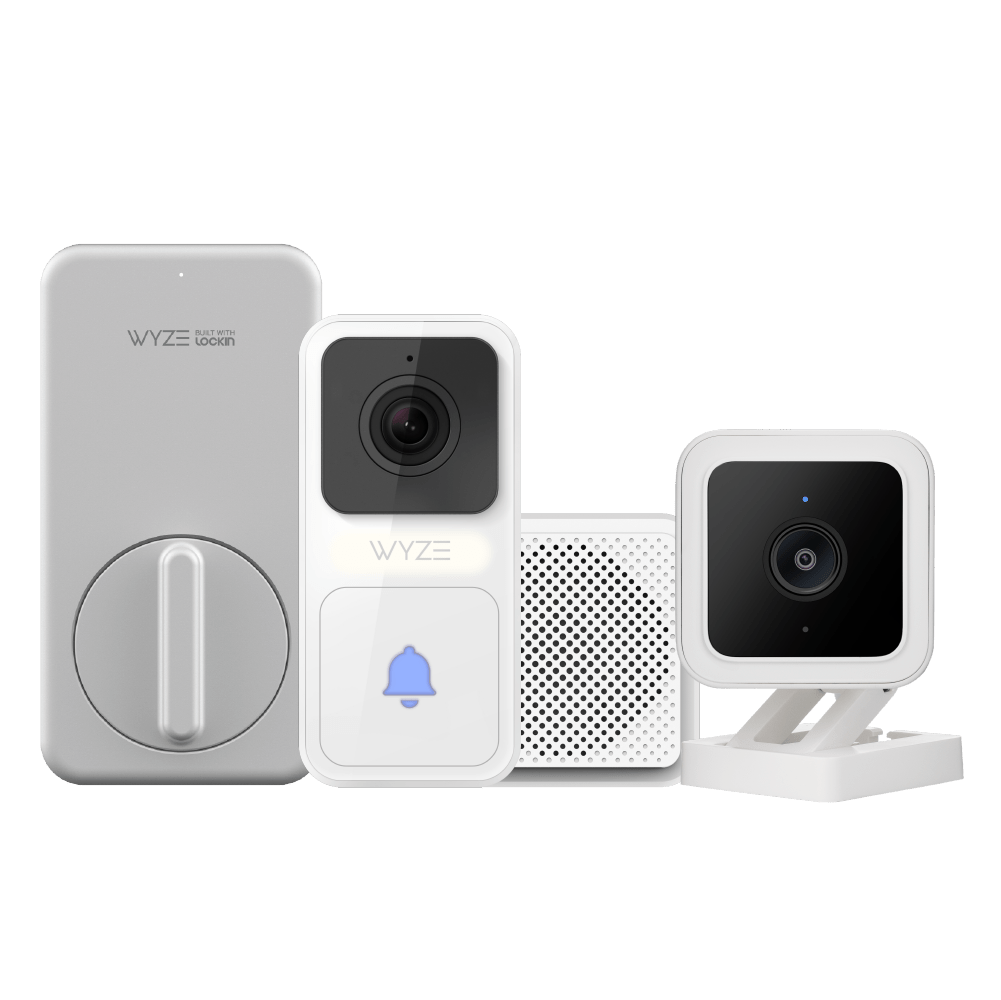

The Front Porch Security Bundle

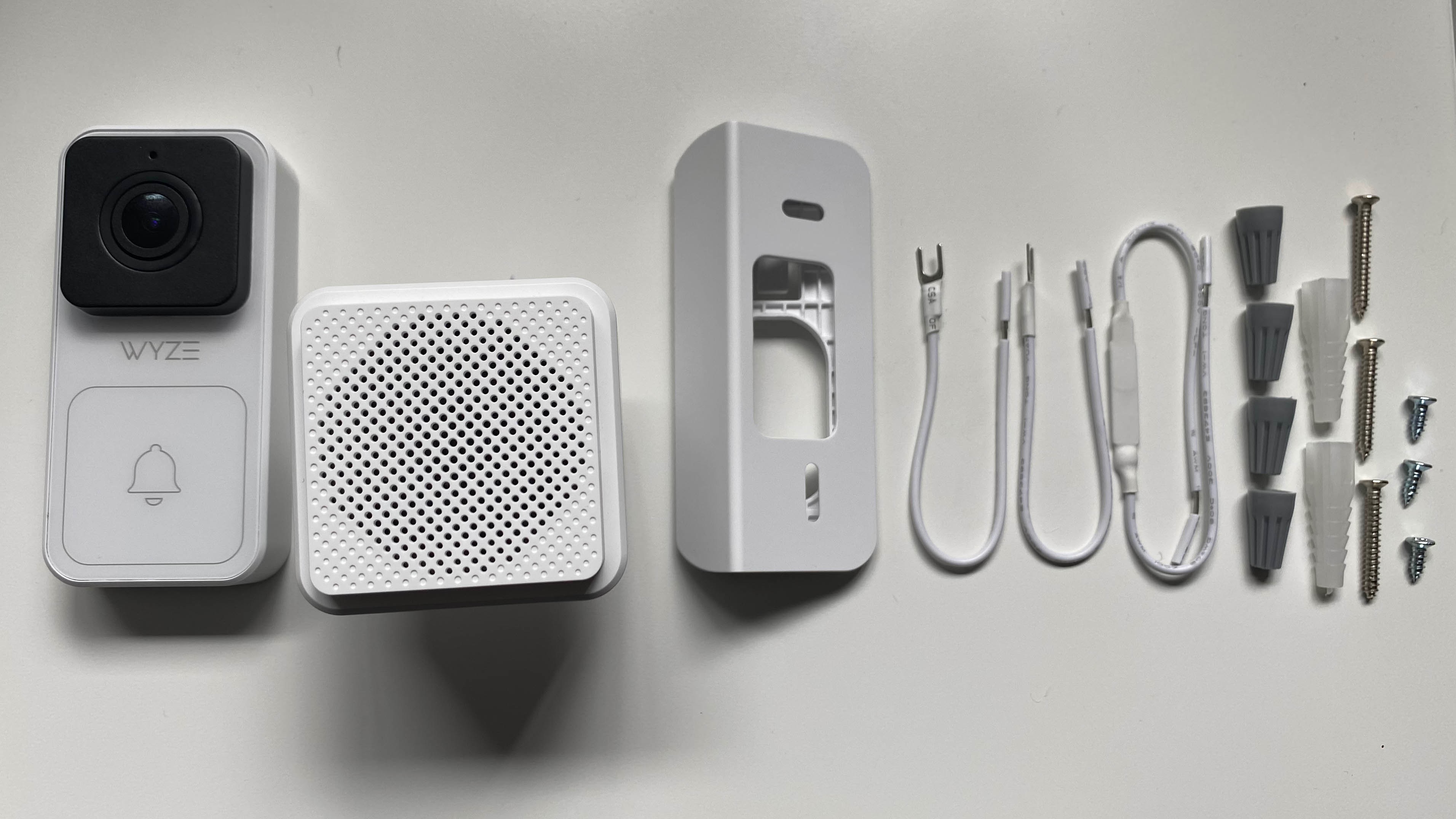

Wyze Video Doorbell

• Power: 16V-24V AC, ≥10VA (May use existing doorbell-chime circuit, or standalone transformer and wires.)
• Weight: 1.7oz / 49gSize: 1.5'' x 3.25'' x 0.625''
• Image Sensor: 2K (2048 x 1536)
• Camera: F2.0 aperture, 2.7mm focal length, 1/2.8" CMOS
• Image Quality: 1080p and 480p w/ 8x Digital Zoom
• Frames per Second: 20 Daytime, 15 Nighttime
• Audio: Built in Speaker & Microphone (with 2-way Audio & Noise/Echo Cancellation)
• White LED (Fill Light): 6 x 5000K (daylight color temperature)
• IR Night Light: 4 x 940nm Infrared LED
• Connectivity: Direct to WiFi 802.11 b/g/n, 2.4GHz (5GHz WiFi not supported)
• Sub1G: 906.8MHz, used for local connection between doorbell and chime.
• IP65 Weather-resistant
• Storage Temperature: -40 to 176°F (-40 to 80°C)
• Operating Temperature: -4 to 122°F (-20 to 50°C)
• Field of View: 120° Vertical x 88° Horizontal
• Operating Systems: iOS 9.0 and Android 5.0 or later
• Data Security: End-to-end encryption, HTTPS secure transfer protocol, AES 128-bit encryption

Wyze Chime

• Chime Power: Standard US Power Outlet: 100V-240V, 0.1A, 50/60Hz
• Weight: 2.0 oz / 56g
• Size: 2'' x 2'' x 1.4''
• Chimes: 5 modern, 4 classic doorbell, 3 animal sounds, 6 automation sounds, 1 intruder alarm

Lock

• Color: Silver
• Dimensions: 4.9" Length x 2.5" Width x 1.3" Depth (2" including knob)
• Weight: 0.67 lb
• Power Source: 4x AA Batteries (included)
• Battery Life: 5-6 months (depending on usage)
• Communication Method: Bluetooth, Zigbee
• Range: To Keypad: 9', To Gateway: 50', BLE to phone: 16'
• Compatibility: Android 5.0+, iOS 9.0+
• Weather Resistance: Indoor only
• Operating Temperature: 14°F - 131°F / -10°C - 55°C
• Storage Temperature: -22°F - 158°F / -30°C - 70°C

Keypad (sold separately)

• Color: Silver
• Dimensions: 3.7" Length x 1.3" Width x 1.0" Depth
• Weight: 0.1 lb
• Power Source: 2x AA Batteries (included)
• Battery Life: 4-6 months (depending on temperature)
• Communication Method: Bluetooth
• Range: To Lock: 9'
• Compatibility: Android 5.0+, iOS 9.0+
• Weather Resistance: IPX5
• Operating Temperature: -4°F - 140°F / -20°C - 60°C
• Storage Temperature: -22°F - 158°F / -30°C - 70°C

Gateway

• Color: White
• Dimensions: 2.1" Length x 2.1" Width x 1.2" Depth (1.9" including pins)
• Weight: 0.12 lb
• Power Source: 110-240V, ~60Hz
• Battery Life: NA
• Communication Method: Bluetooth, Zigbee, Wifi
• Range: To Lock: 50', To Router: 50
• Compatibility: Android 5.0+, iOS 9.0+
• Weather Resistance: Indoor only
• Operating Temperature: 14°F - 131°F / -10°C - 55°C
• Storage Temperature: -22°F - 158°F / -30°C - 70°C
